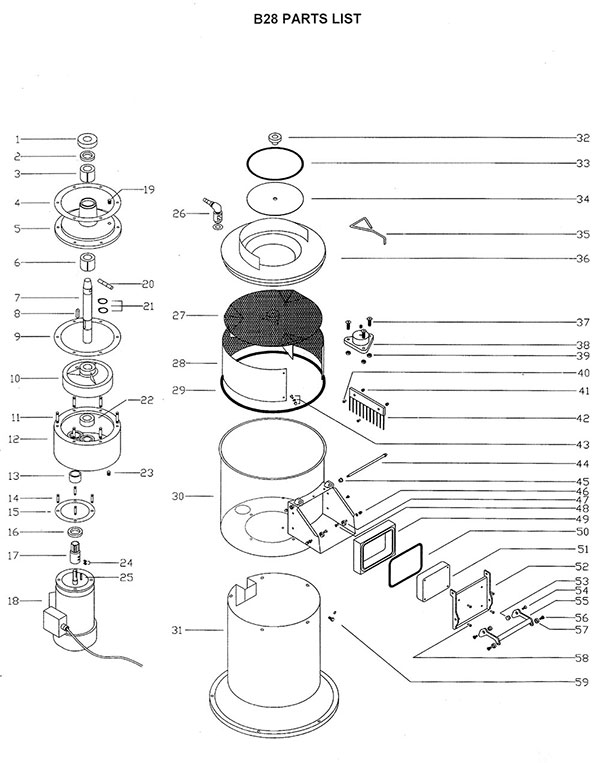

No. Description
1 Bold B28 - Cowl
2 Bold B28 - Oil Seal
3 Bold B28 - Top Bearing
4 Bold B28 - Gearbox Gasket
5 Bold B28 - Gearbox (Top)
6 Bold B28 - Bearing (Bottom)
7 Bold B28 - Drive Shaft
8 Bold B28 - Woodruff Key
9 Bold B28 - Gearbox Gasket
10 Bold B28 - Main Gearwheel
11 Bold B28 - Stud x 6
12 Bold B28 - Gearbox (sump)
13 Bold B28 - Bearing (Pinion)
14 Bold B28 - Stud x 4
15 Bold B28 - Motor Gasket
16 Bold B28 - Oil Seal
17 Bold B28 - Pinion
18 Bold B28 - Motor
19 Bold B28 - Oil Filler Screw
20 Bold B28 - Crosspin
21 Bold B28 - Circlips x 2
22 Bold B28 - Bearing
23 Bold B28 - Oil Drain Screw
24 Bold B28 - Pinion Retaining Screw
25 Bold B28 - Woodruff Key
26 Bold B28 - Water Inlet complete
27 Bold B28 - Abrasive Peeling Plate
28 Bold B28 - Abrasive Drum Liner
29 Bold B28 - Top Rubber Seal (drum)
30 Bold B28 - Main Body
31 Bold B28 - Pedestal (Various Heights)
32 Bold B28 - Lid Knob
33 Bold B28 - Splash Cover Seal
34 Bold B28 - Splash Cover
35 Bold B28 - Lifting Hooks
36 Bold B28 - Loading Hopper
37 Bold B28 - Plate Boss Screw
38 Bold B28 - Plate Centre Boss
39 Bold B28 - Plate Boss Nut
40 Bold B28 - Plate Brush Retaining Screw
41 Bold B28 - Plate Brush Retaining Nut
42 Bold B28 - Nylon Brush
43 Bold B28 - Liner Retaining Nut and Bolt
44 Bold B28 - Door Spindle
45 Bold B28 - Spindle Retaining Nut
46 Bold B28 - Door Cam Retaining Nut
47 Bold B28 - Door Cam
48 Bold B28 - Door Cam Retaining Screw
49 Bold B28 - Door Frame
50 Bold B28 - Door Gasket
51 Bold B28 - Alloy Door Back
52 Bold B28 - S/S Door
53 Bold B28 - Handle Retaining Nut
54 Bold B28 - Handle Retaining Screw
55 Bold B28 - S/S Door Handle
56 Bold B28 - Roller Retaining Screw
57 Bold B28 - Nylon Door Roller
58 Bold B28 - Alloy Door Back Retaining Screw
59 Bold B28 - Pedestal Retaining Screw and Washer
